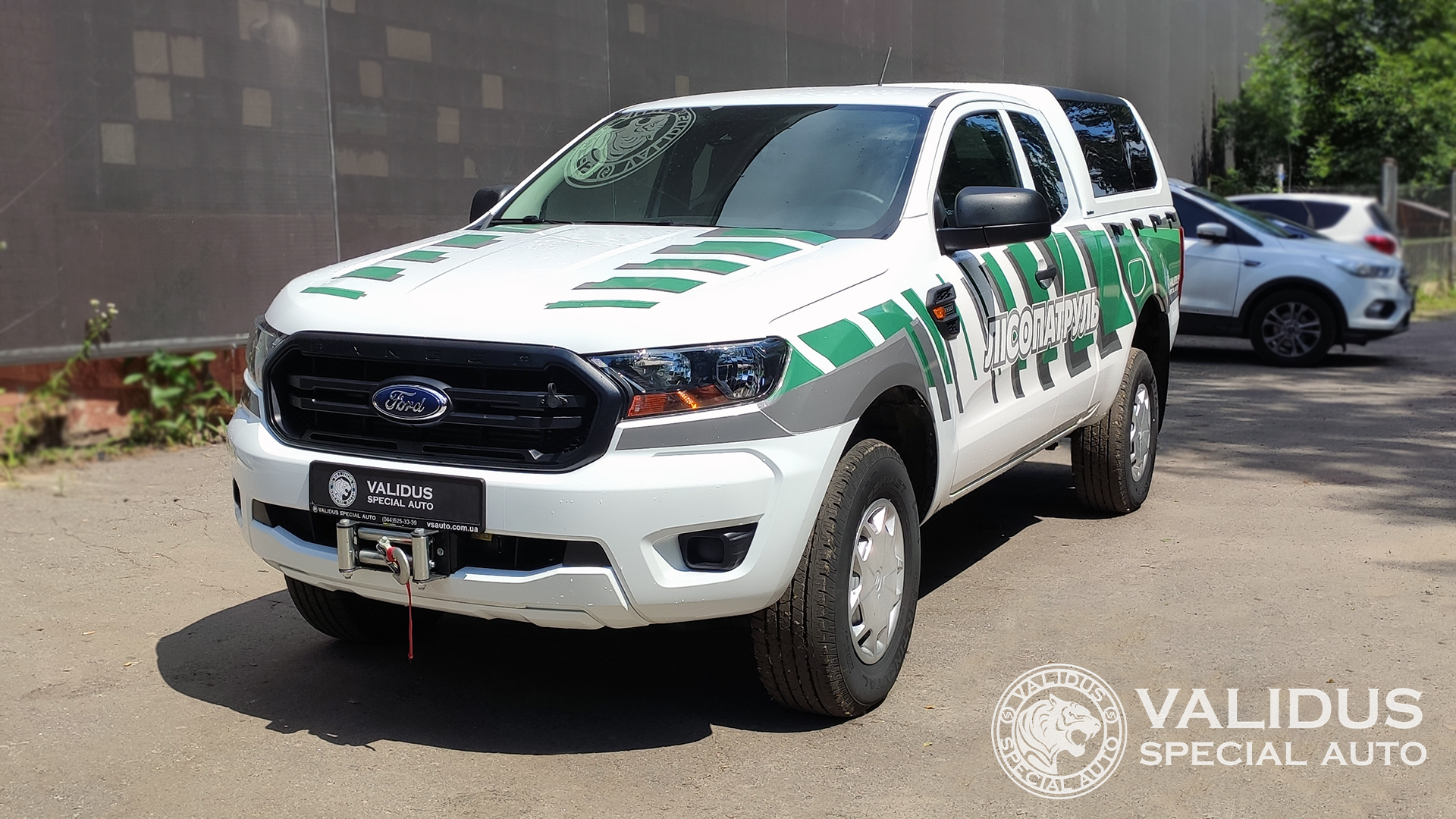

Forest patrol complex

A forest patrol complex has been designed to patrol forests and quickly extinguish fires. It is used to deliver operational crew, fire-technical equipment, tools, fire extinguishing means and water supply to the fire scene.

bullet_icon

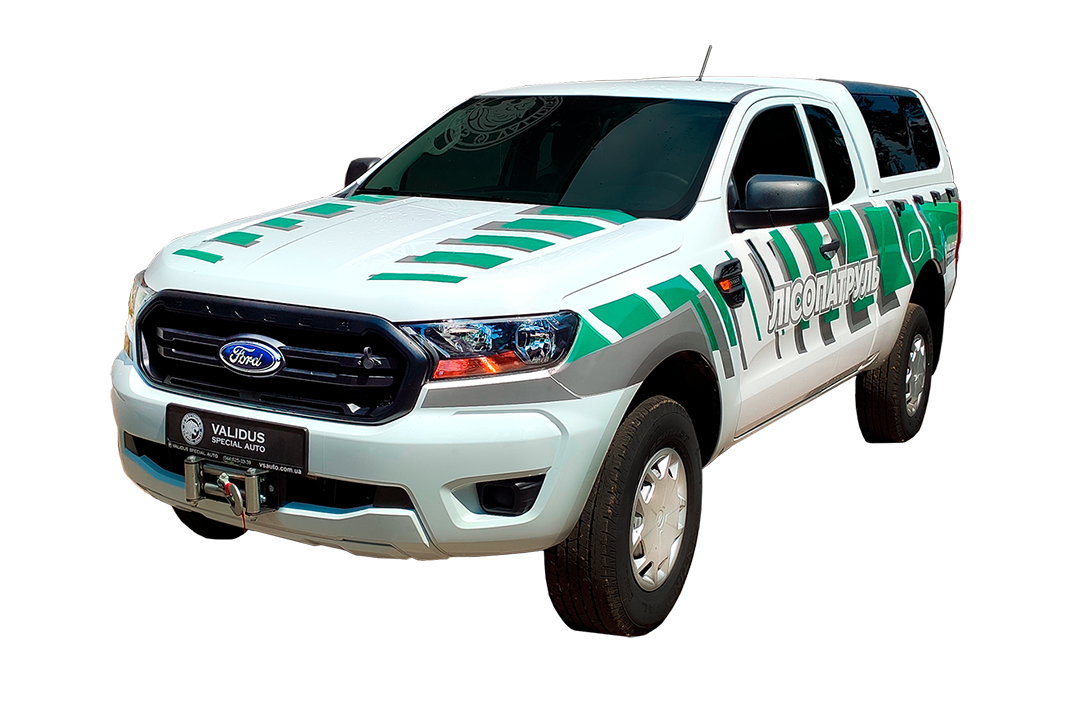

Base chassis

Ford Ranger

bullet_icon
Appointment

Forest patrol service

bullet_icon
Price

By individual calculation


Лесопатрульный комплекс





















Лесопатрульный комплекс





















Basic configuration (excluding the price of the base chassis):

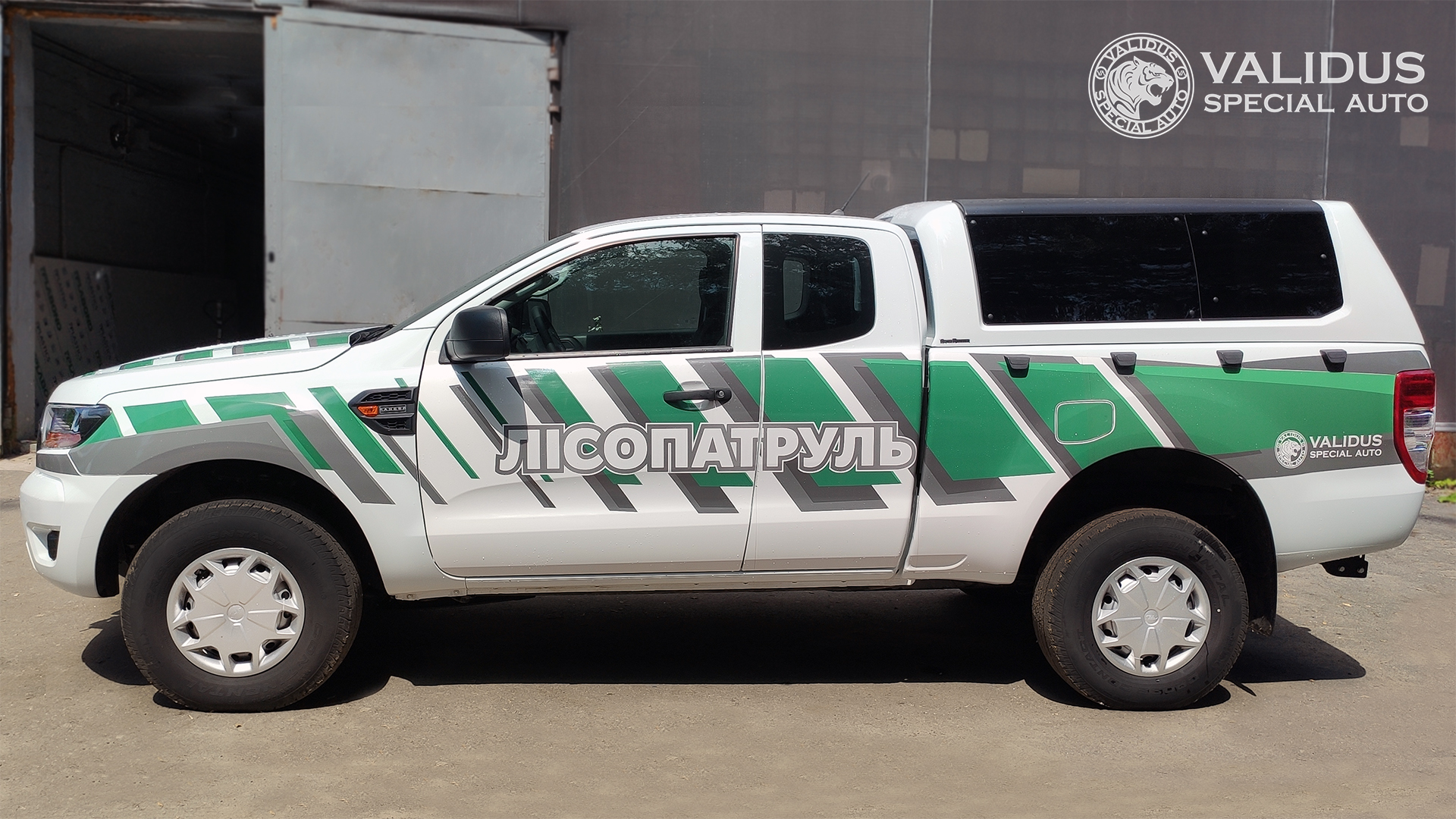

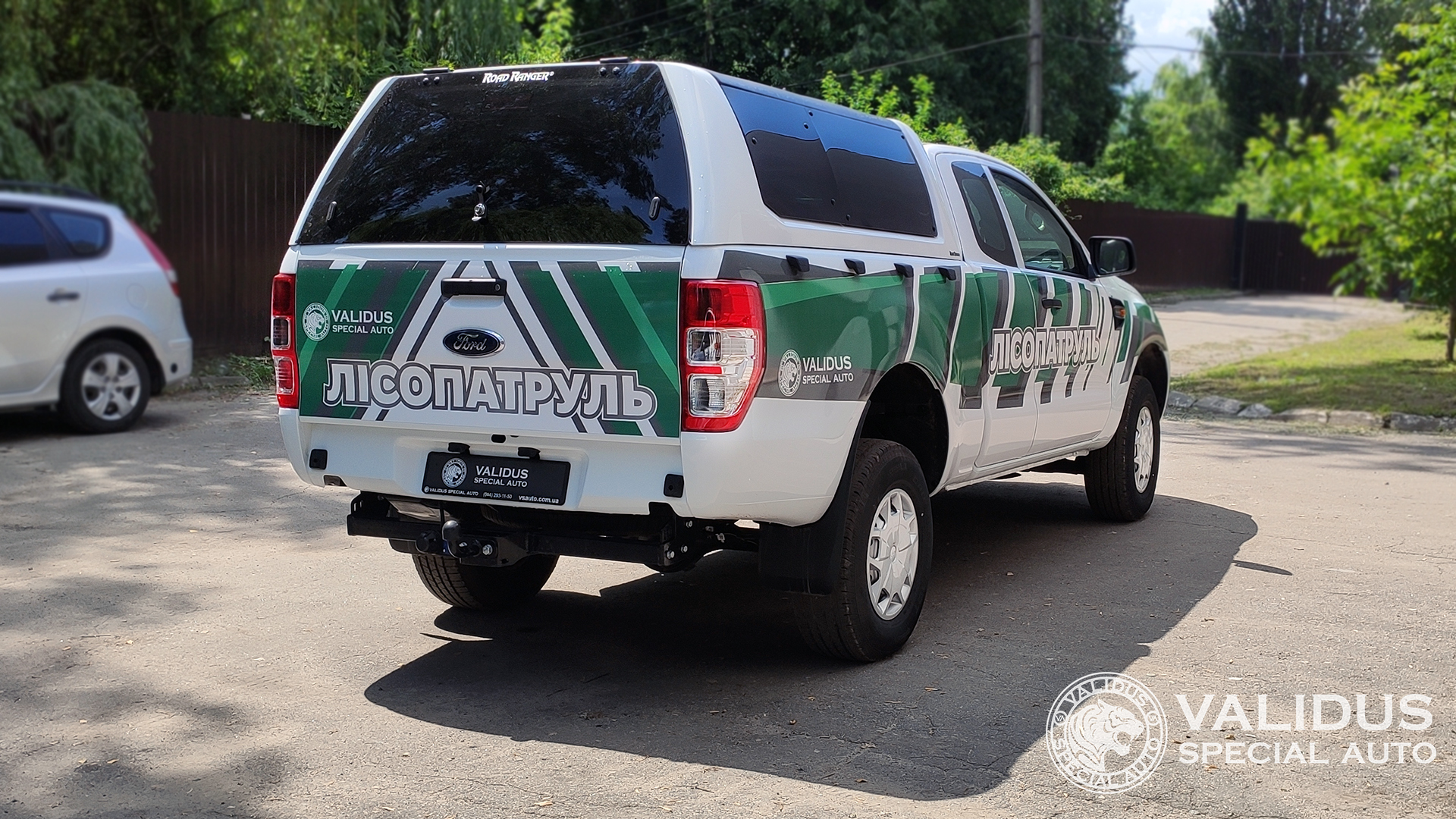

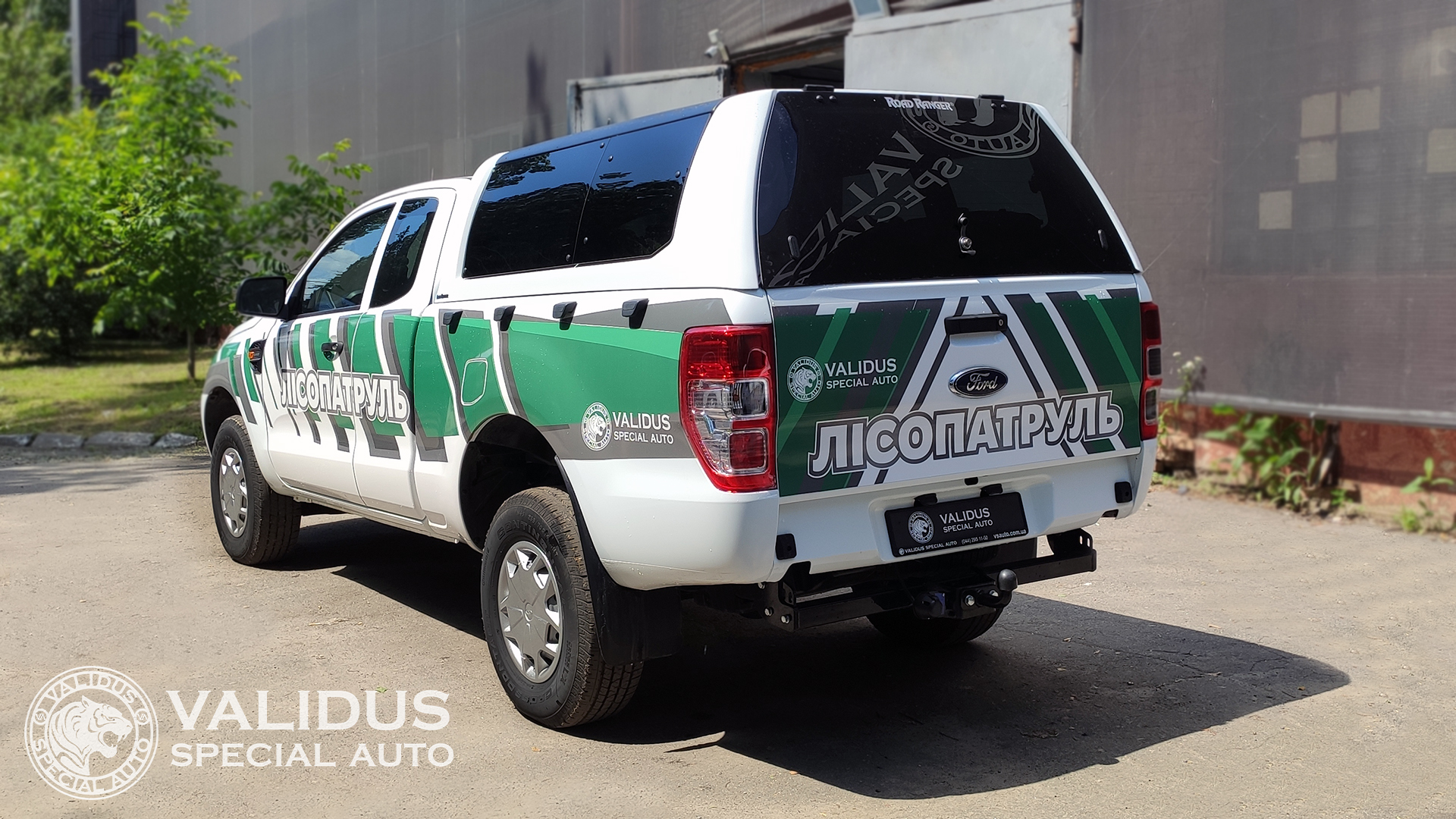

  • Base vehicle – all-wheel-drive pickup;
  • Engine – turbodiesel, 2.0 liter, Euro-6;
  • Engine power 170 hp;

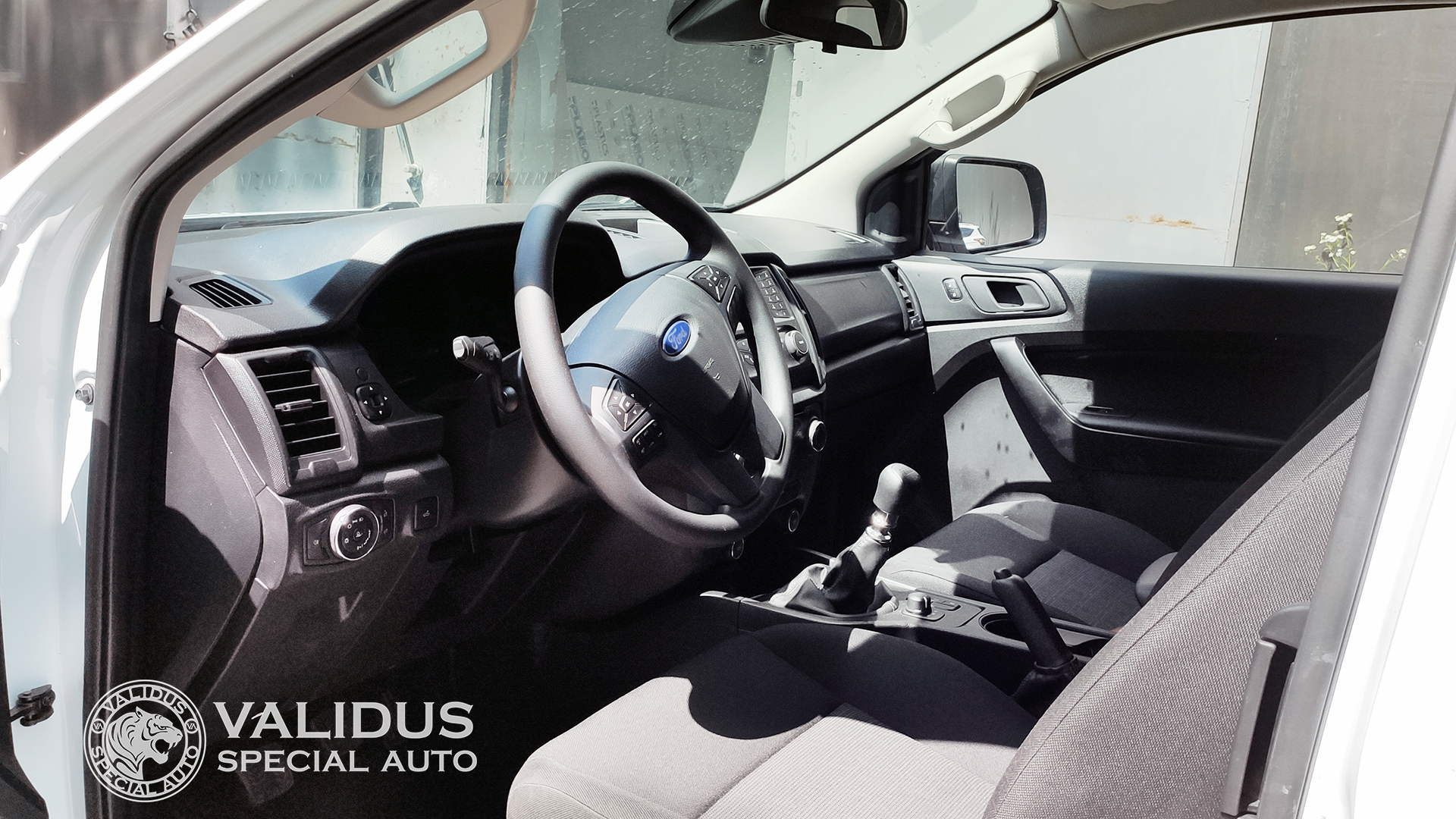

  • Mechanical, six-speed gearbox;
  • Maximum total weight – 3270 kg;

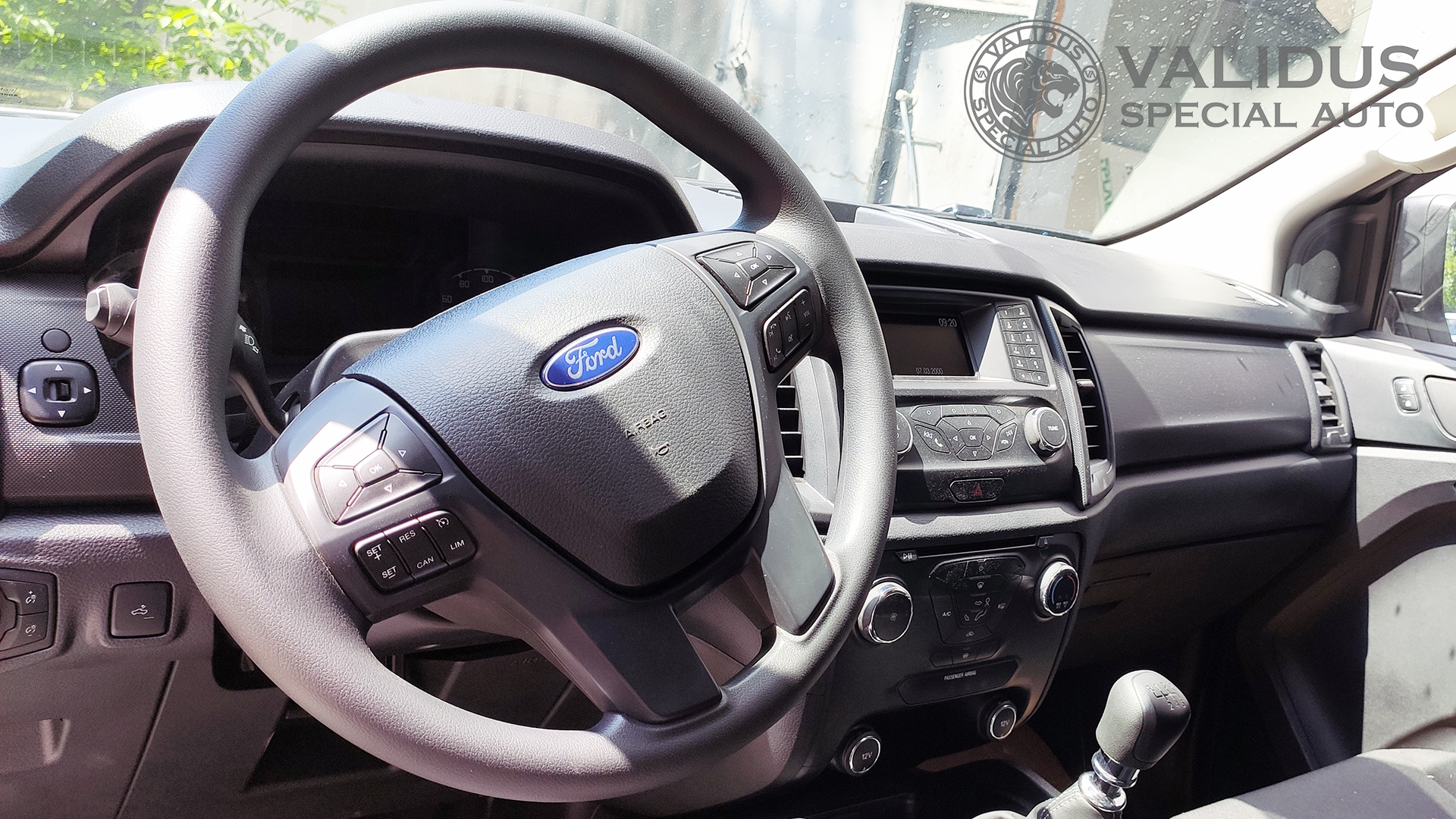

  • Power steering;
  • Front windows lifters;

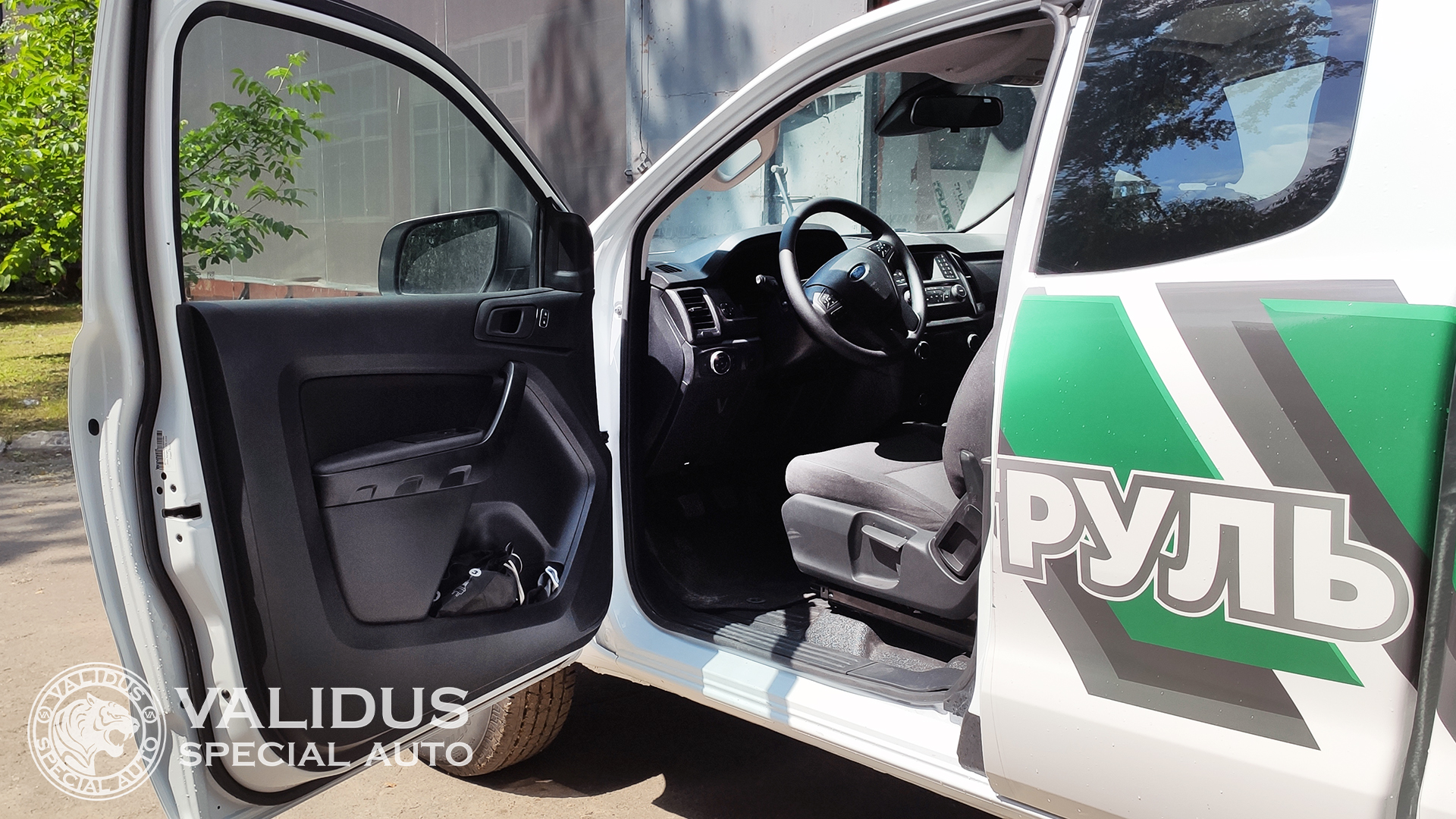

  • Airbags for a driver and a front passenger;
  • Air conditioner;
  • Metal protection of the engine and the transfer case;

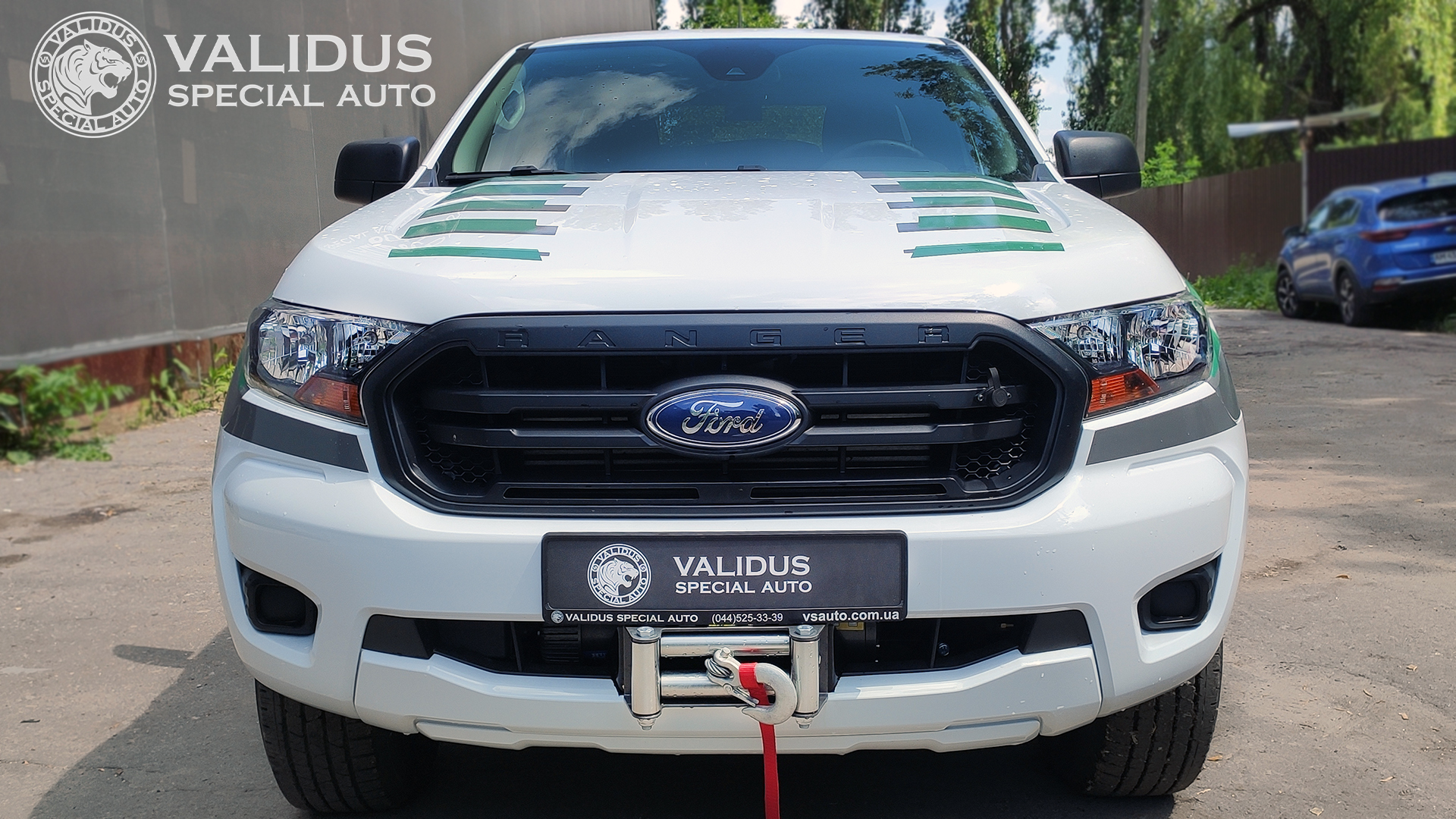

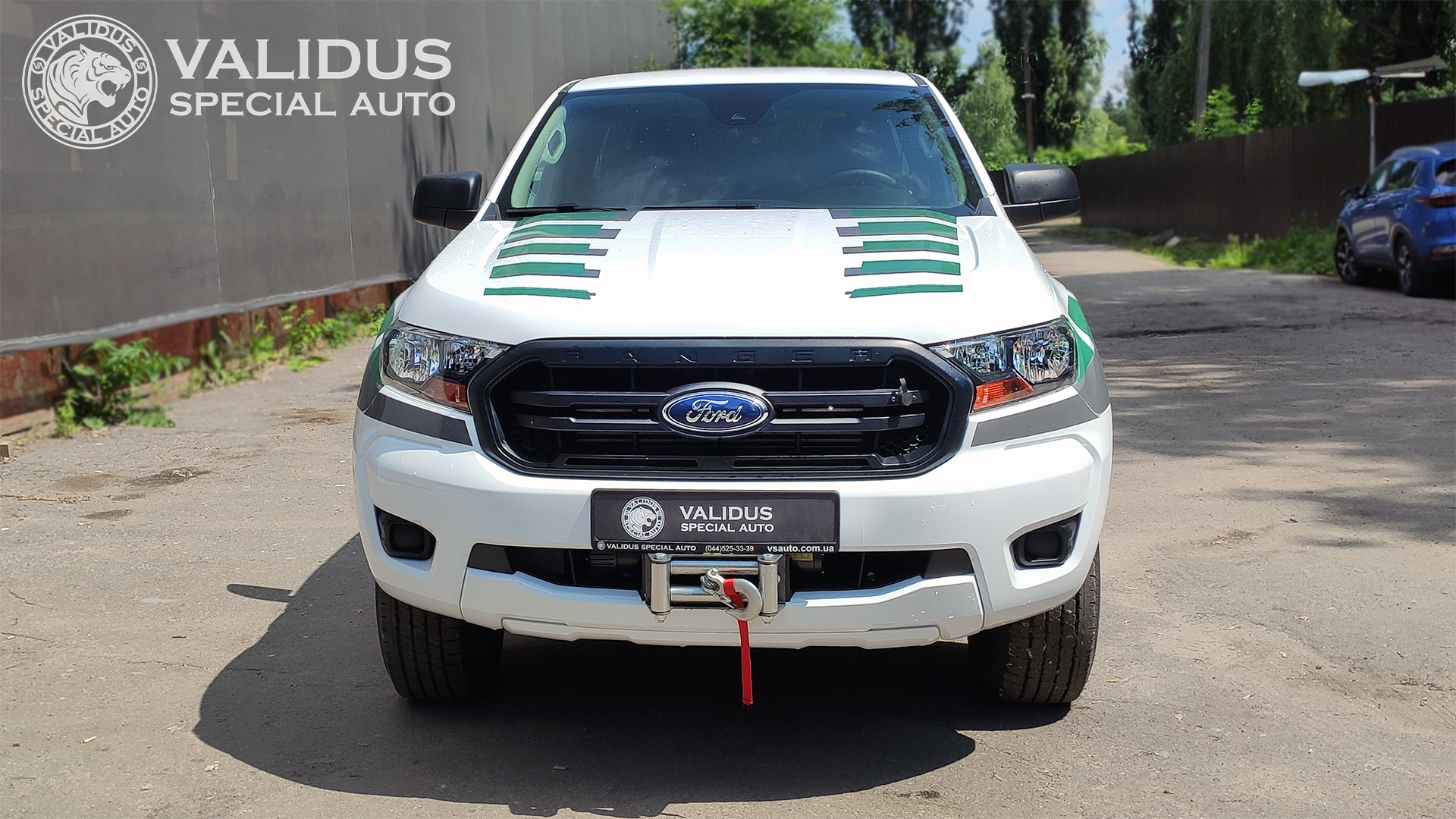

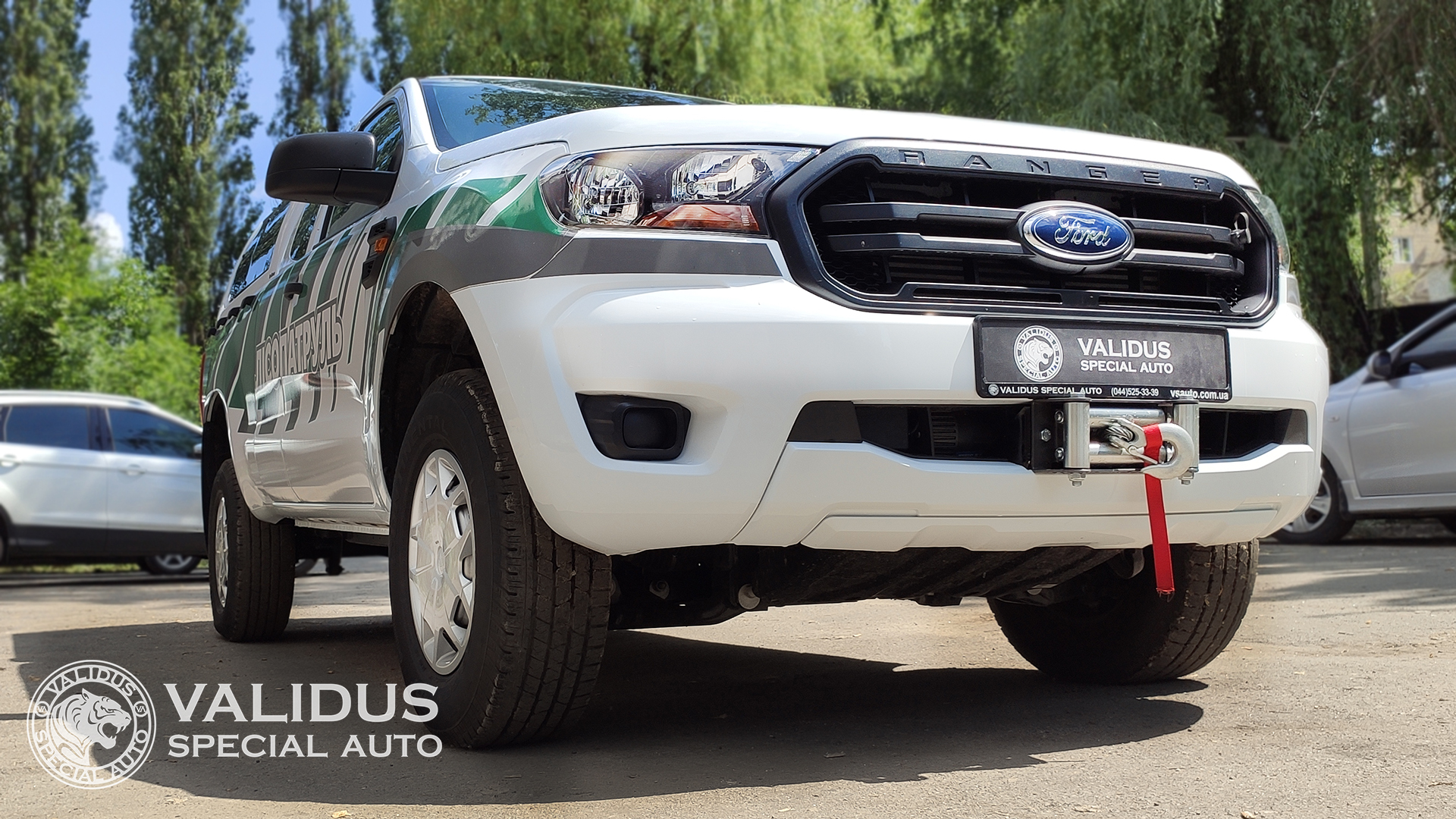

  • Electric winch with a pulling force of 5.4 tons;
  • Fire water tank made of reinforced fiberglass, with a volume of 600 liters;

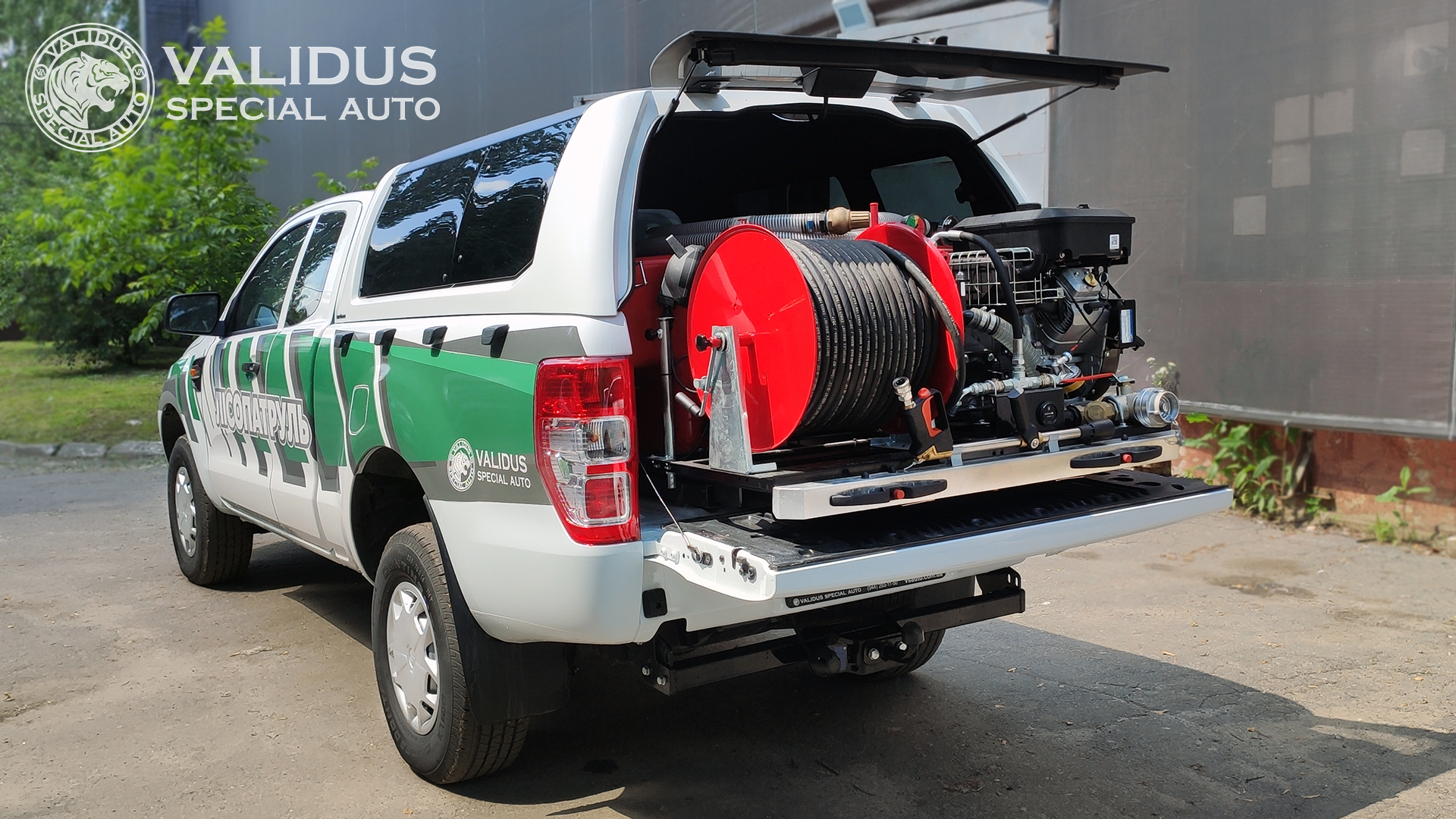

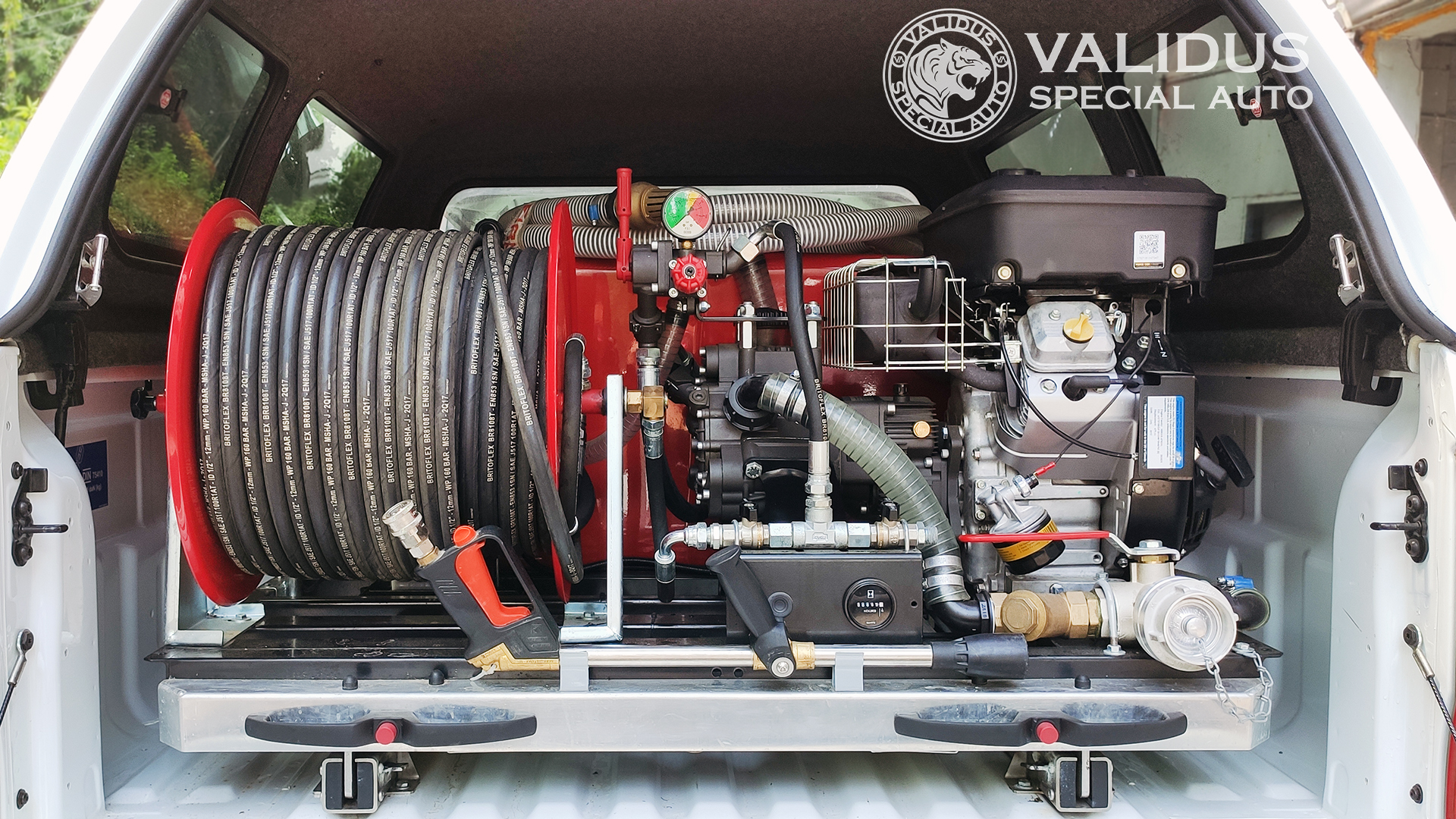

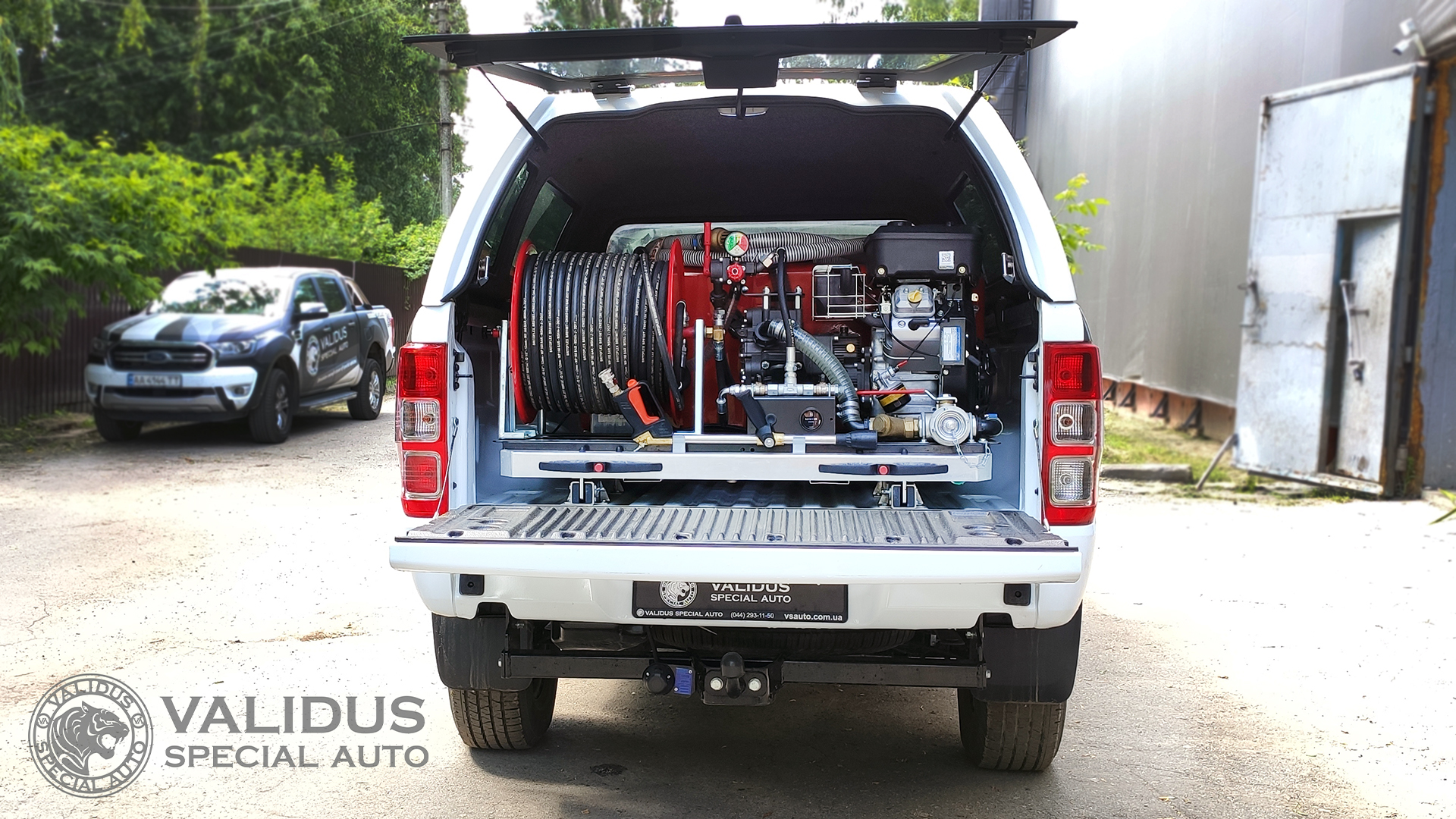

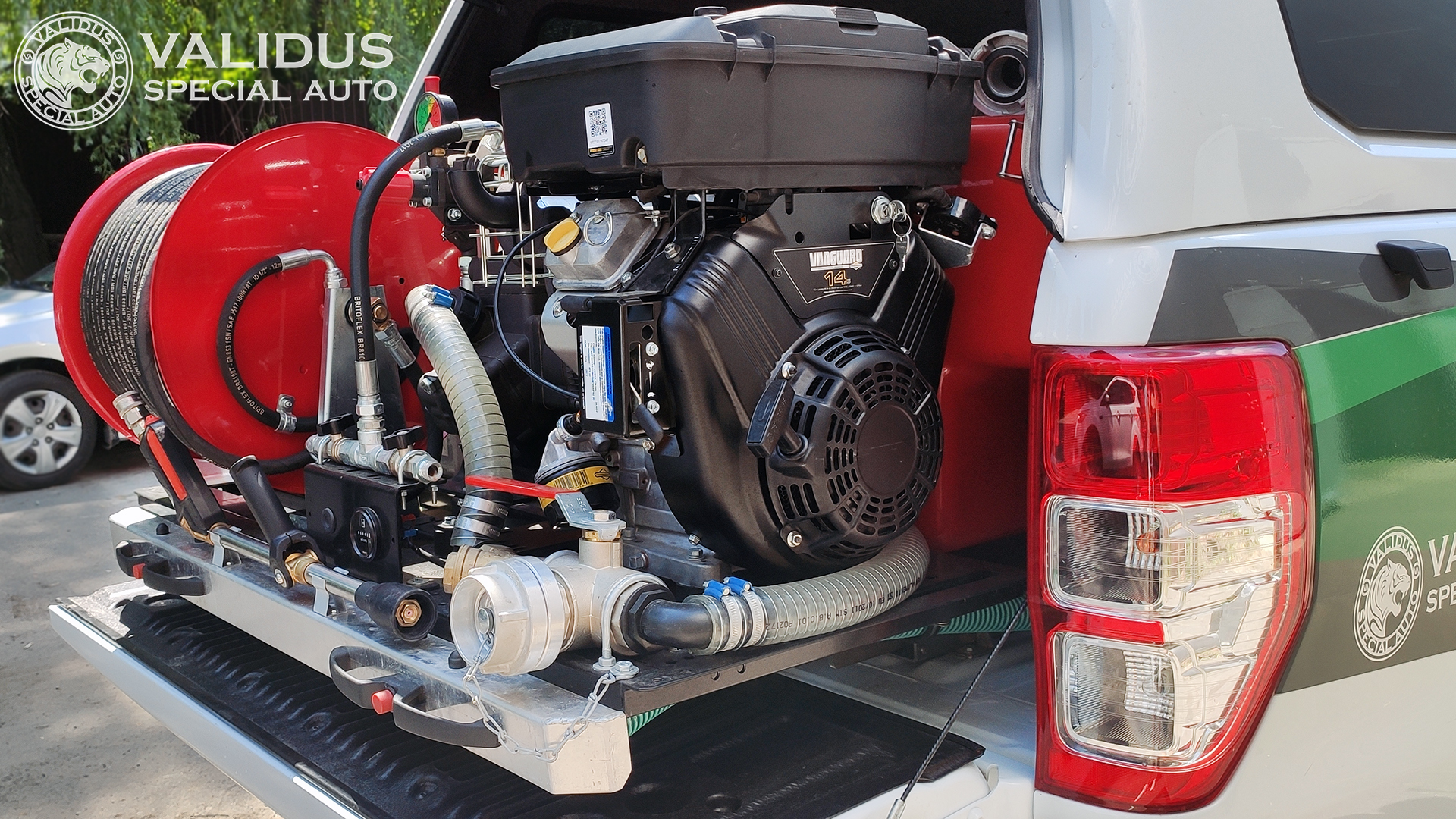

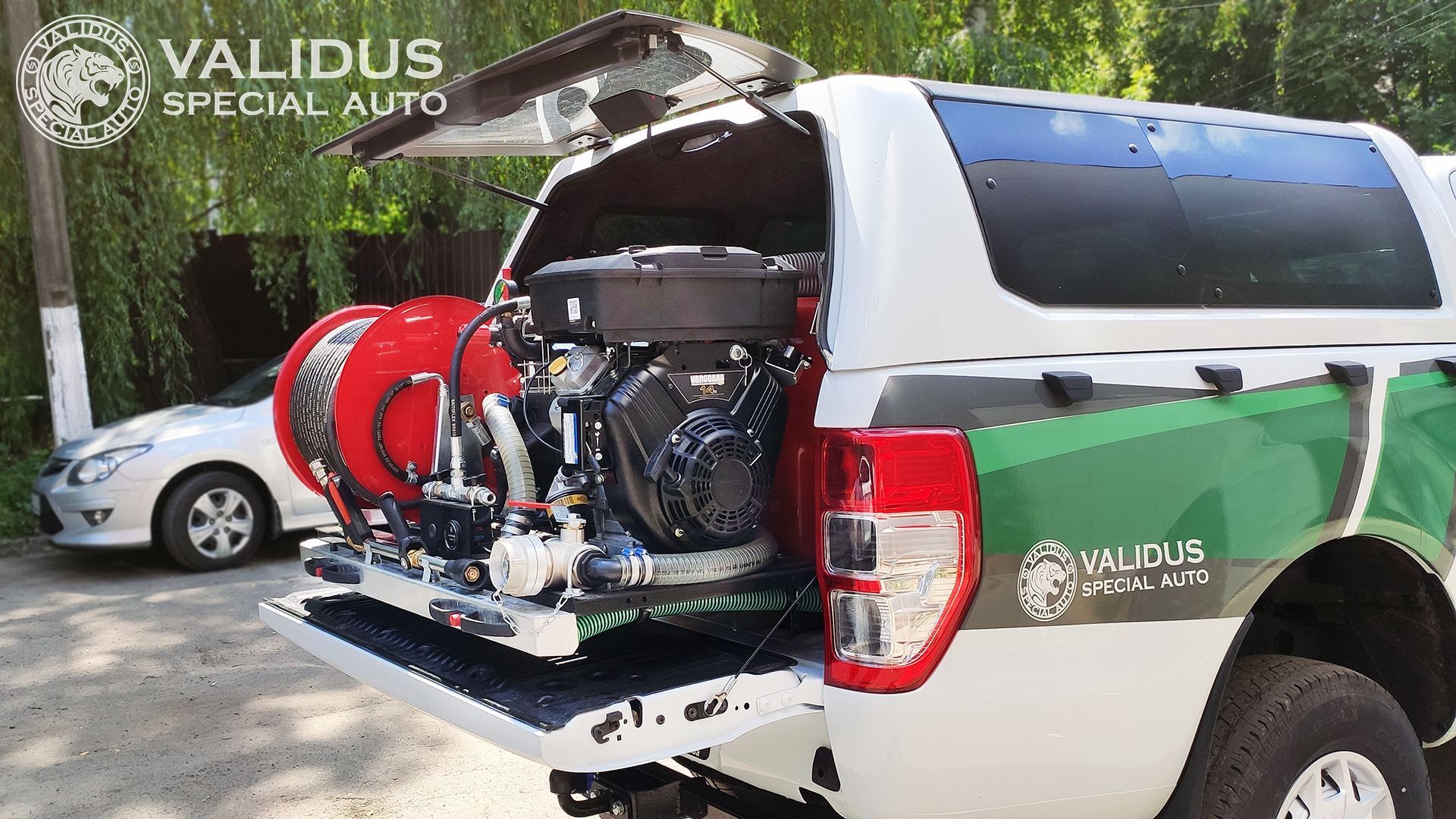

  • High pressure fire module. Maximum pump capacity – 100 liters per minute. Maximum pressure – 50 bar. Working pressure varies from 20 to 40 bar. Internal combustion engine, 18 hp

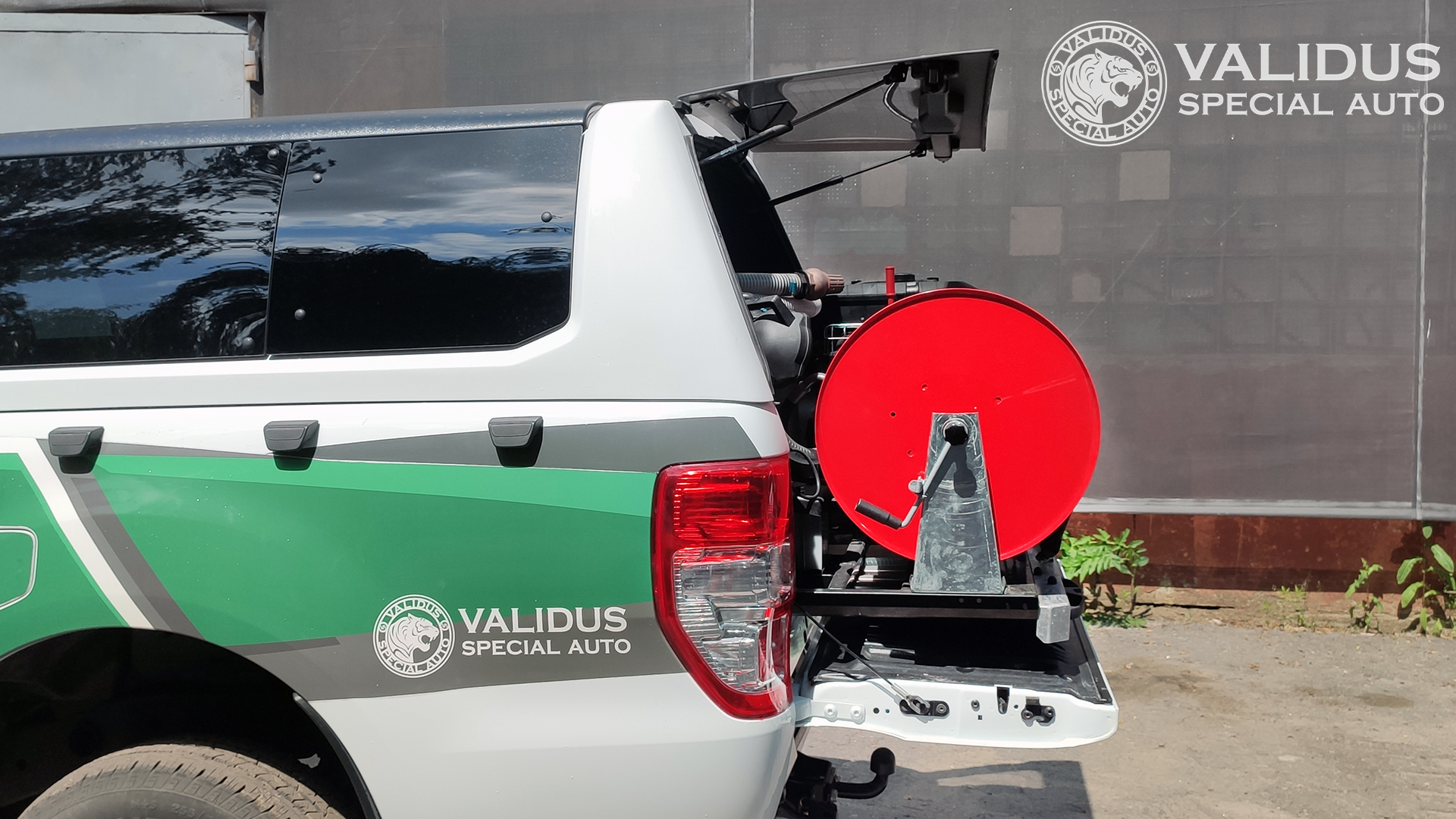

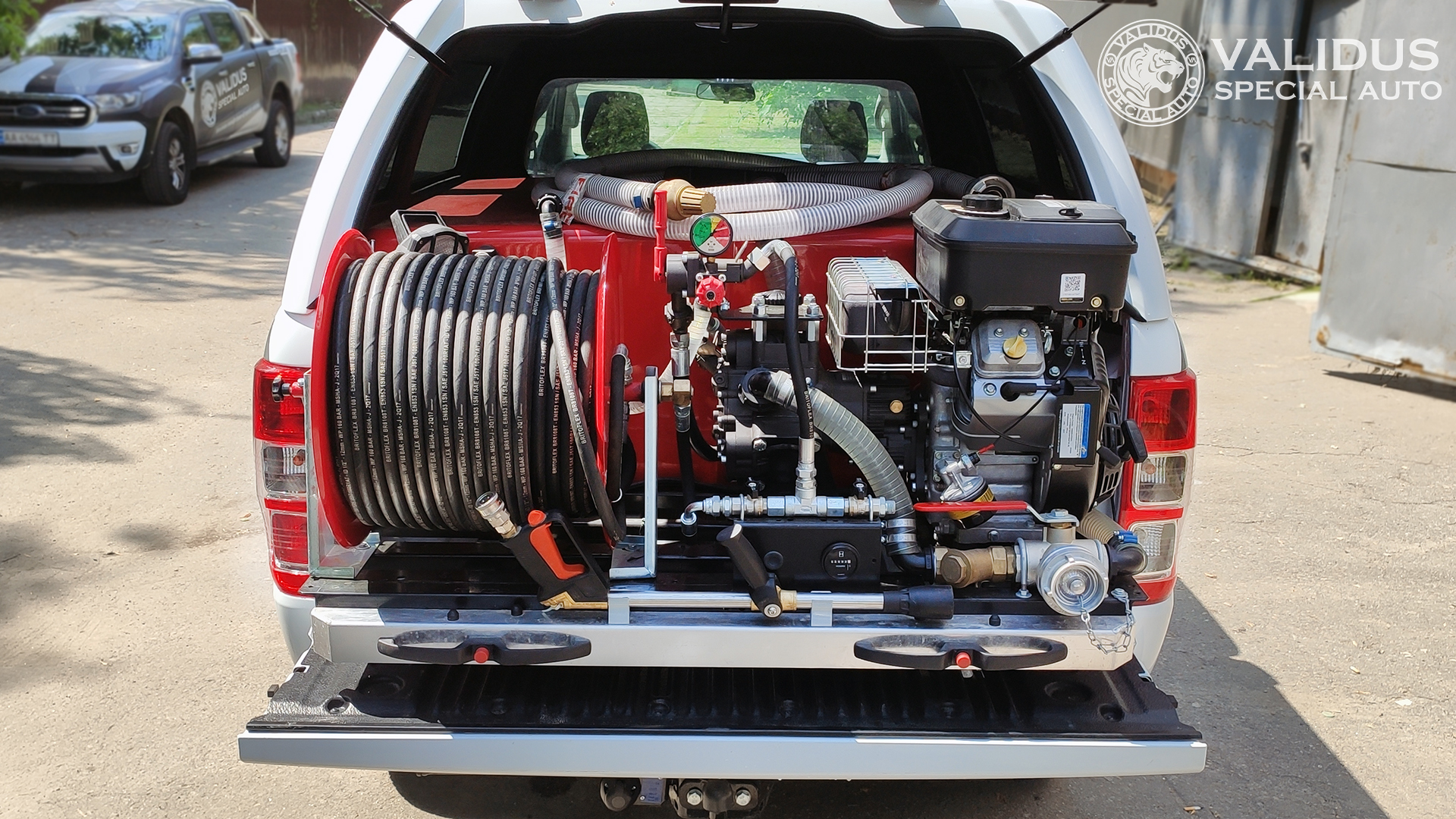

  • Length of the reel hose is 80 meters;
  • Suction kit with the ability to take water from an open reservoir from a depth of up to 7 meters;
  • Maximum range of water jet up to 25 meters.

Additionally, at the request of the Customer, “Small forest patrol complex” can be completed with the following equipment and gear:

  • Manual fire extinguishers (sprayers), 20-25 liters;
  • Battery-powered sprayers, 15-20 liters;
  • Quadcopter (drone) with thermal imaging camera;
  • Portable group and / or individual lights;
  • Thermal imager;
  • Protected tablet with maps and Internet access;
  • Navigator with video recorder;
  • Floating motor pump;
  • Ax, hooks, shovels and other entrenching tools;
  • Portable and / or stationary radio station;
  • Light panel and strobe lights in blue or yellow color
  • Roof crago box for 350-500 liters.
leo_image


01 00

Лесопатрульный комплекс





















Characteristic

Basic configuration (excluding the price of the base chassis):

  • Base vehicle – all-wheel-drive pickup;
  • Engine – turbodiesel, 2.0 liter, Euro-6;
  • Engine power 170 hp;
  • Mechanical, six-speed gearbox;
  • Maximum total weight – 3270 kg;
  • Power steering;
  • Front windows lifters;
  • Airbags for a driver and a front passenger;
  • Air conditioner;
  • Metal protection of the engine and the transfer case;
  • Electric winch with a pulling force of 5.4 tons;
  • Fire water tank made of reinforced fiberglass, with a volume of 600 liters;
  • High pressure fire module. Maximum pump capacity – 100 liters per minute. Maximum pressure – 50 bar. Working pressure varies from 20 to 40 bar. Internal combustion engine, 18 hp
  • Length of the reel hose is 80 meters;
  • Suction kit with the ability to take water from an open reservoir from a depth of up to 7 meters;
  • Maximum range of water jet up to 25 meters.

Additionally, at the request of the Customer, “Small forest patrol complex” can be completed with the following equipment and gear:

  • Manual fire extinguishers (sprayers), 20-25 liters;
  • Battery-powered sprayers, 15-20 liters;
  • Quadcopter (drone) with thermal imaging camera;
  • Portable group and / or individual lights;
  • Thermal imager;
  • Protected tablet with maps and Internet access;
  • Navigator with video recorder;
  • Floating motor pump;
  • Ax, hooks, shovels and other entrenching tools;
  • Portable and / or stationary radio station;
  • Light panel and strobe lights in blue or yellow color
  • Roof crago box for 350-500 liters.
