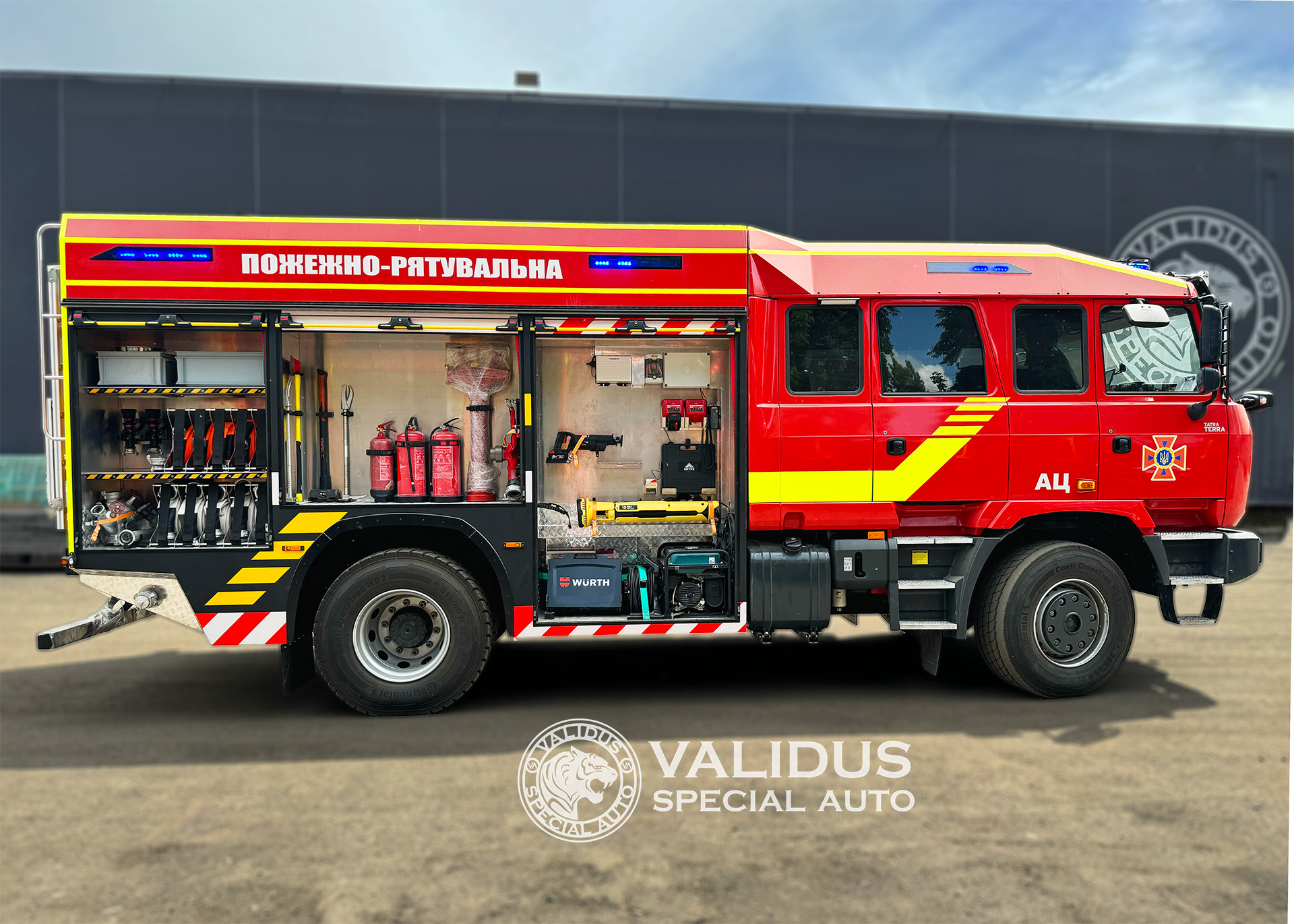

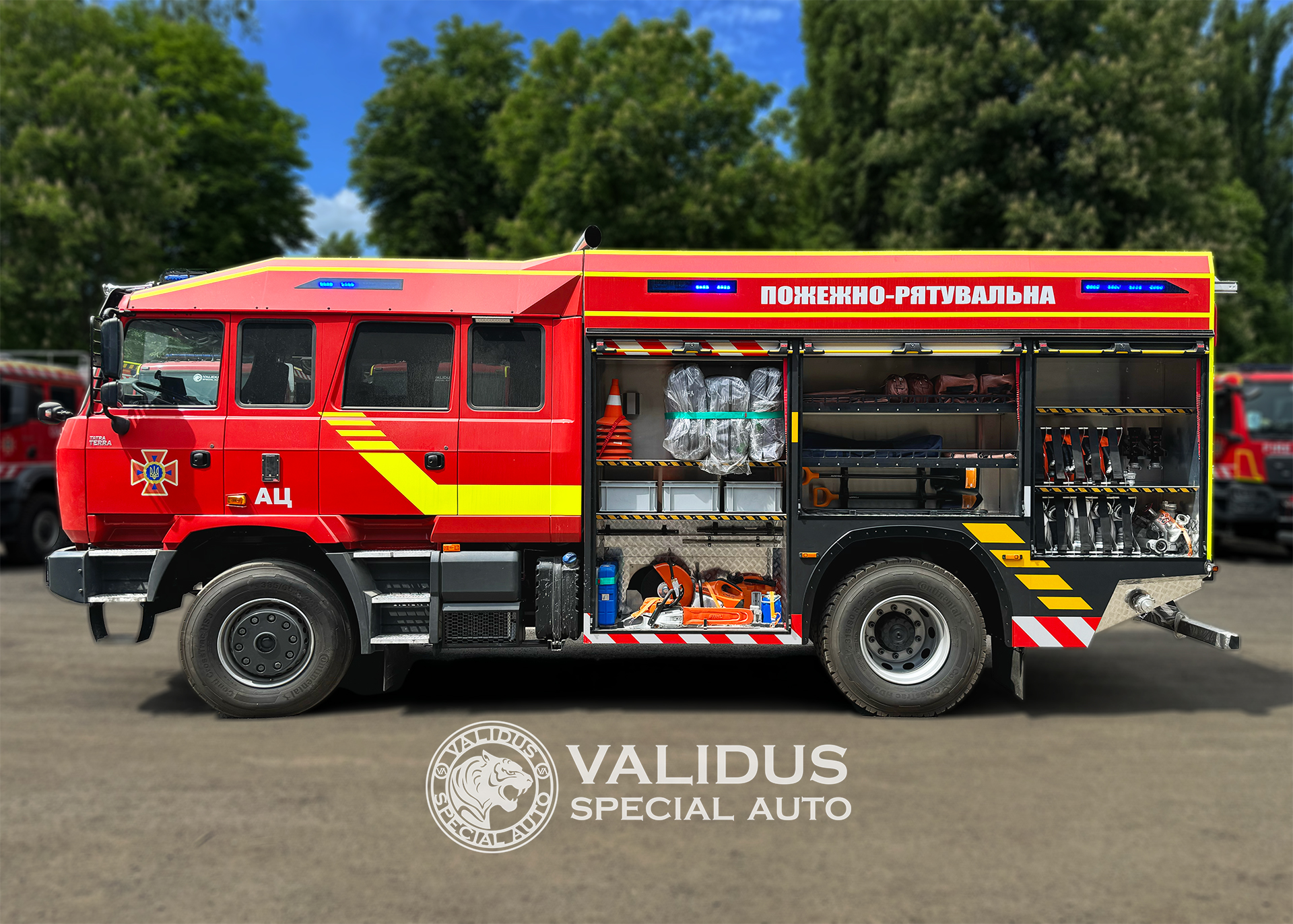

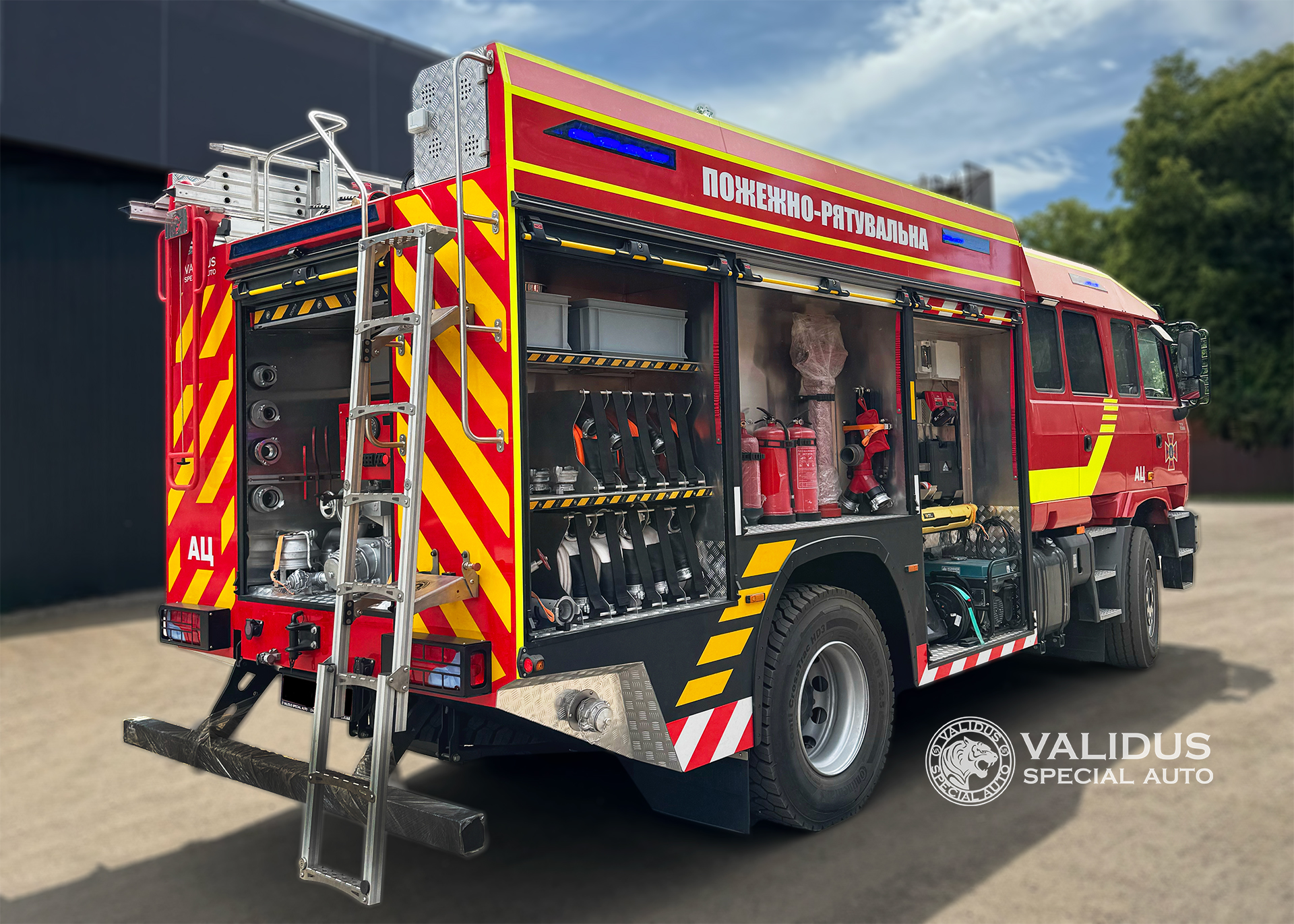

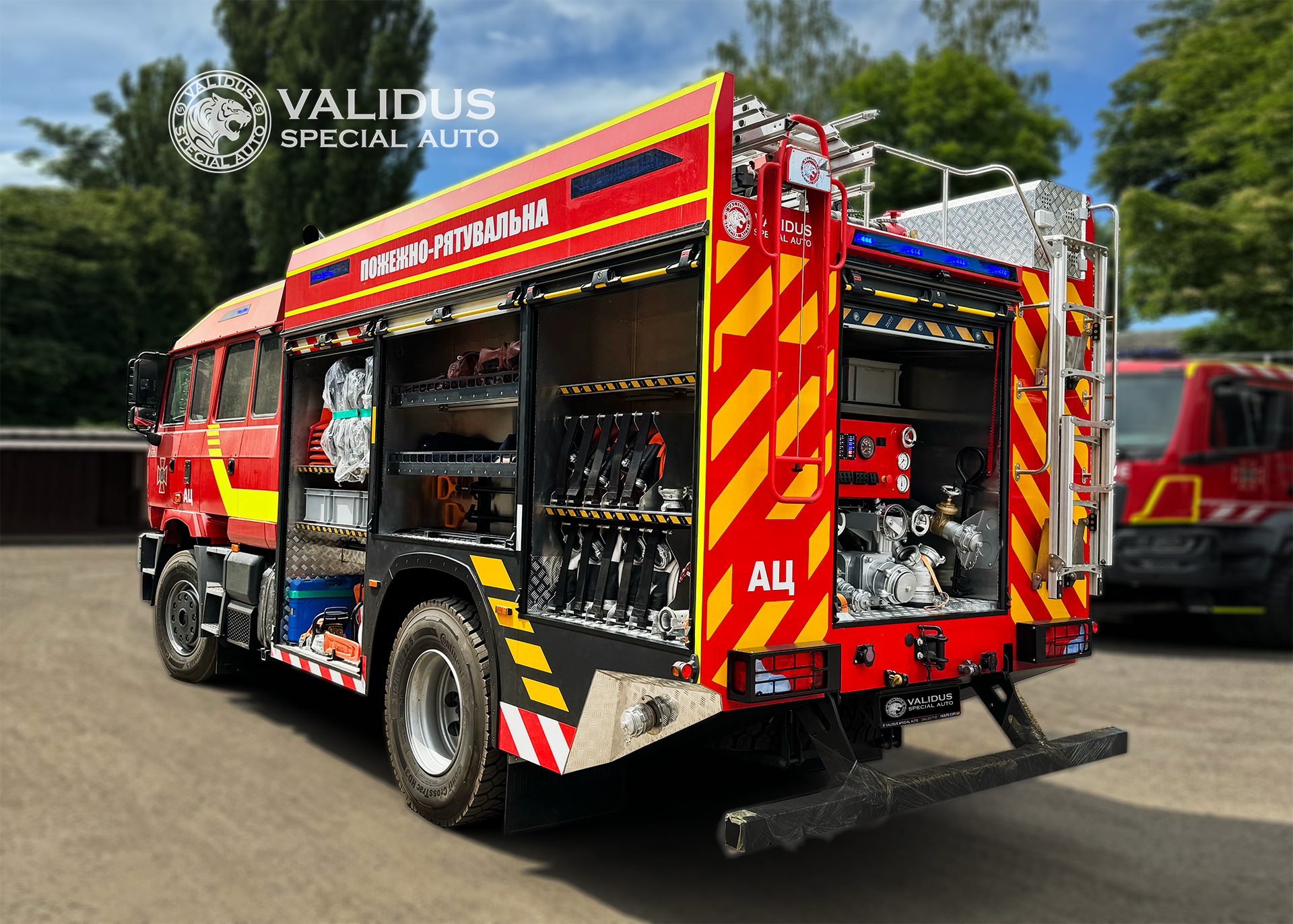

The fire tanker based on Tatra is a high-mobility vehicle designed for extinguishing natural and man-made fires in various locations, transporting firefighters and special fire-rescue equipment to emergency sites, providing first aid to victims, alerting the public about emergencies, illuminating fire-rescue operations and other emergency rescue operations in hazardous situations or areas with difficult access. The vehicle holds 5500 liters of water and 500 liters of foam.

Any chassis can be used for the production of the AC-6-50. The chassis can be customized according to the customer’s wishes and needs.

Functionality:

• Operational and mobile delivery of 1+7 combat crew members to the fire site; or delivery of water to dry areas;
• Organization of radio communication using a base radio station for a distance of at least 20 km and portable radio stations for a distance of at least 3 km;
• Ensuring firefighting, search and rescue operations, leadership of subordinate forces and means on fires, emergencies;
• Organization of supervision of emergency situations and fires liquidation;
• Organization and operation of the emergency response center at the fire site or emergency erea.

Configuration:

• Vehicle;
• Coloring according to the color-graphic schemes;
• Air compressor with a capacity of at least 200 l / min;;
• Tank with the volume of 4000 l of water;
• 400- liter tank for foaming agent;

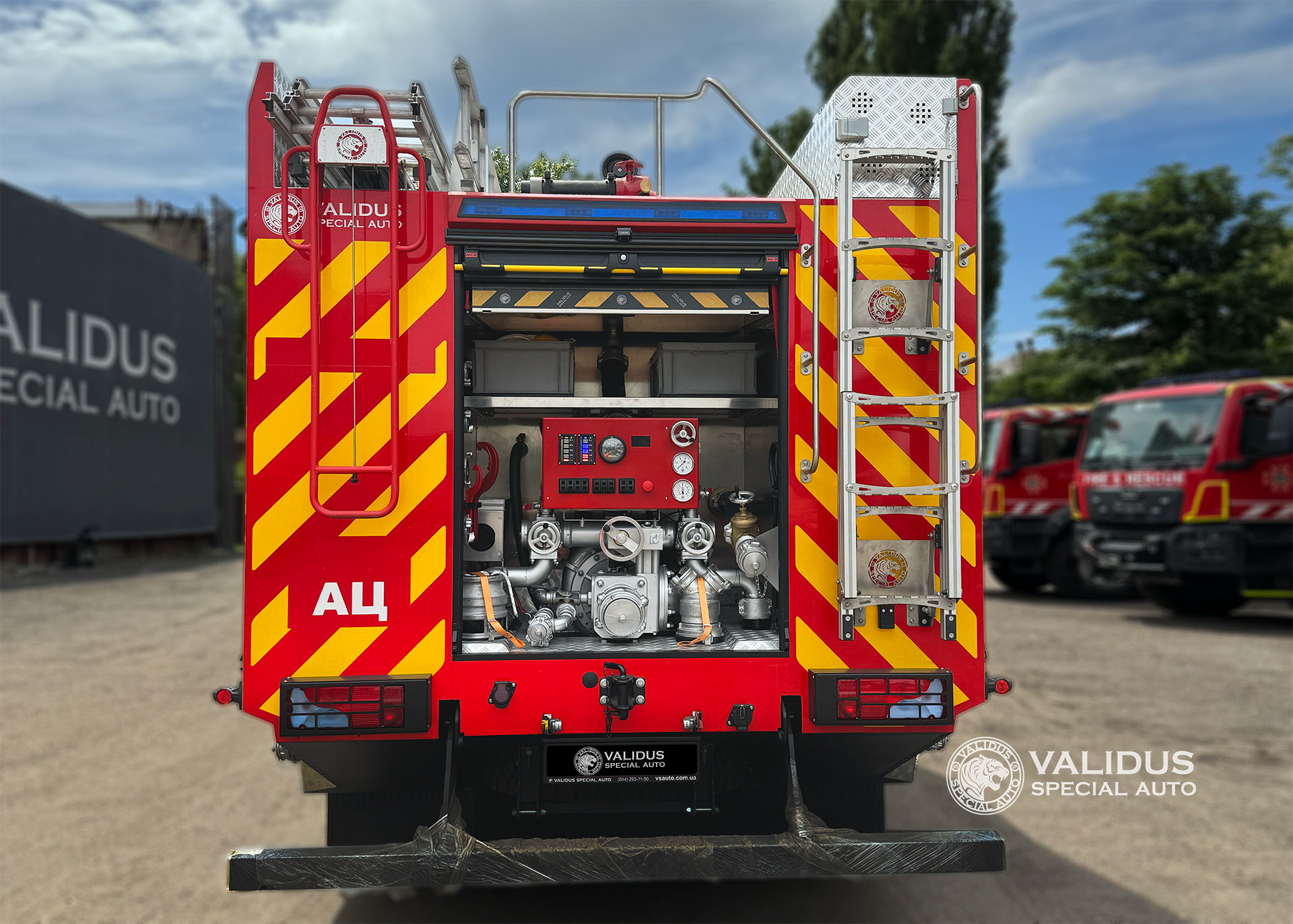

• Powerful pump with a capacity of 50 l / s and a maximum pressure of 10 bar
• Autonomous heating system of the superstructure and a pump;
• Water collection hose;
• Powder fire extinguisher, OP-5 type;
• Pressure coupling adapter OPN 70х50;
• Pressure coupling adapter OPN 80х70;
• Pressure coupling adapter OPN 80х50;
• Fire extension ladder (folded length 4380 ± 30 mm, operating length 10700 ± 30 mm);
• Gas cutter;
• Chainsaw;
• Hydrant stand pipe;
• Set of dielectric tools for working in explosive areas and de-energizing objects (bots – 2 pairs, mat – 1 piece, scissors – 1 piece, gloves – 2 pairs, all items are cased);
• Group lantern with a holder and a charger (12 V);
• Fire rescue rope, 30 m long, in a cover;
• Fire rescue rope, 50 m long, in a cover;
• Rubber hose bridge;
• Multifunctional rescuer tool for penetration;
• Fire-assault ax-hammer;
• Suction fire hose with two imposed B-type heads;
• Pressure-suction fire hose “NV” type with two imposed heads GRN-80;
• Latex pressure fire hose D51 with imposed nuts GR-50 or reinforced fire hose with double-sided polymer coating 51T | 2 grn-50
• Reinforced fire hose with double-sided polymer coating 77T | 2 grn-80;
• Three-way hose branching, RT type;
• Suction mesh with nylon rope;
• Fire manual combined multi-mode barrel;
• Medium foam expansion barrel, type GPS-600;
• Vehicle radio station completed with mounts and a remote antenna;
• Vehicle first-aid kit type AMA-1 or equivalent;
• Wheel chocks;
• Warning triangle;
• Towing rope (5-6 m);
• Combined hydraulic tool with built-in hand pump
• Medical stretcher.

* Equipment depends on the base vehicle and can be configured by the customer.
